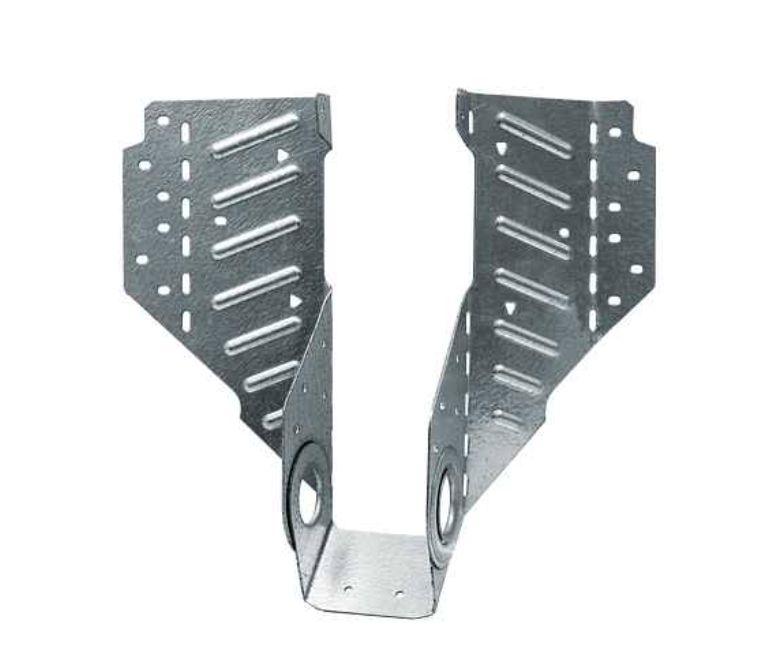

LSSR1.81Z - Adjustable Rafter Hanger with ZMAX Finish

The patent-pending LSSR light slopeable/skewable rafter hanger is the next generation of field-adjustable rafter hangers. One of its key features is that it can be installed after the rafter has been tacked into place. A versatile hanger, it is field adjustable for skews up to 45° and features an innovative hinged swivel seat which adjusts up to a 45° slope.

• Makes it possible to install after the rafters are already in place
• Flange design allows for easy skew (left or right) adjustment, from 0° to 45°
• Swivel seat adjusts easily from 0° to 45° up or down
• Joist Size (in.) : 1 3/4
• Ga: 18
• W (in.): 1-13/16
• H (in.): 8-15/16
• A (in.): 4-1/8
• Coating/Material: ZMAX Finish
• Packaging Qty: 1
